Hydrotechnik overview of HT-PD PR130 Pressure sensor
 |
HT-PD PR130 Pressure sensor |
| Hydrotechnik in china | |
| Hydrotechnik HT-PD PR130 data download | |
HT-PD PR130 Pressure sensor Product range pressure sensors type HT-PD PR130 |
|
Hydrotechnik Technical data of HT-PD PR130 Pressure sensor
HT-PD PR130 Technical data |
|
| Overload range | 1.5 x nominal pressure |
| Burst pressure | 3 x nominal pressure |
| Signal type | Two wire analog (4 ... 20 mA), three wire analog (0 ... 10 VDC) |
| Supply voltage Ub | |
| ... at 4 ... 20 mA | 10...30VDC |
| ... at 0 ... 10 VDC | 12...32VDC |
| Current consumption | 6.5mA |
| Overvoltage protection | 32VDC |
| Error limit (of fi nal value) | comprises the infl uences non-linearity, hysterese, repeatability, zero-point- and span error |
| ... at +22 °C (room temperature) | ±0.5% |
| ... at -15 ... +85°C | ±1% |
| ... at +85 ... +100°C | ±2.5% |
| ... at -40 ... -15°C | ±2.5% |
| Compensation temperature range | -40...+100 |
| Non-linearity | < ± 0.4 % of final value |
| Reproducability | < ± 0.1 % of final value |
| Hysterese | < ± 0.1 % of final value |
| Long-term stability | < ± 0.1 % of final value/year |
| Response time | < = 1 ms (10 ... 90 %) |
| Frequency range | < = 1 kHz |
| Isolation resistance | min. 100 MOhm |
| Total resistance | RG = (Ub -10 V) / 20 mA (at output signal 4 ... 20 mA) |
| Load resistance | RL = > 5 kOhm (at output signal 0 ... 10 VDC) |
| Number of load cycles | > 1 x 107 |
| Medium temperature | -40...+125 |
| Environmental temperature | -40 ... +105 °C (short term +125 °C) |
| Storage temperature | -40...+125 |
| EMV test | EN 50081-2, EN 50082-2 |
| Vibrational stability | 5 mm 10 ... 32 Hz, 20 g 32 ... 500 Hz, DIN EN 60068-2-6 |
| Shock stability | 50 g (11 ms half-sine) |
| Electrical measuring connector | 4 pole device connector, M12 x 1 |
| Mechanical connection thread | ISO228-G1/4A |
| Sealing material | profi le seal ring acc. to DIN 3869, FKM |
| Protection type (EN 60529 / IEC 529) | IP 67 (when connector is screwed) |
| Casing material | non-corrosive high-grade steel |
| Membrane material | non-corrosive high-grade steel |
| Tightening torque | 40 Nm (± 5 Nm) |
| Weight | ~ 85 g |

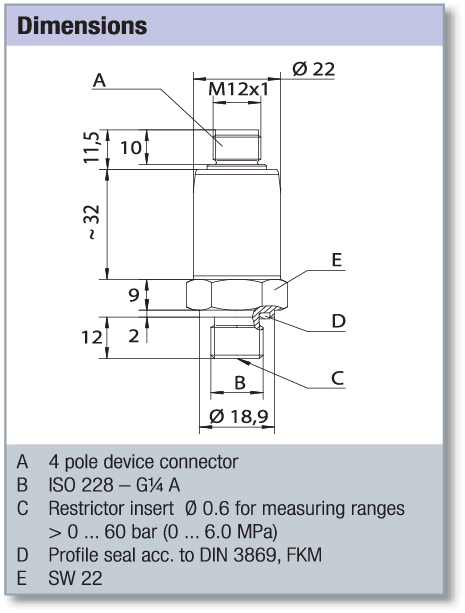

Hydrotechnik HT-PD PR130 Dimensions
Hydrotechnik HT-PD PR130 Electrical connector
| Pin assignment | 4 ... 20 mA (two wires) | 0 ... 10 V (three wires) |
 |
1 + Ub / signal + | 1 + Ub |
| 2 free | 2 free | |
| 3 – Ub / signal – | 3 – Ub / signal – / GND | |
| 4 free | 4 Signal + |
Hydrotechnik pressure sensors HT-PD PR130 4...20mA output
| Measuring range(MPa) | Measuring range(Bar) | 4...20mA |
| -0.1...0MPa | -1...0bar | 3403-30-I5.37 |
| -0.1...0.6MPa | -1...6bar | 3403-32-I5.37 |
| -0.1...1MPa | -1...10bar | 3403-54-I5.37 |
| 0...0.6MPa | 0...6bar | 3403-28-I5.37 |
| 0...1.0MPa | 0...10bar | 3403-26-I5.37 |
| 0...1.6MPa | 0...16bar | 3403-41-I5.37 |
| 0...4.0MPa | 0...40bar | 3403-31-I5.37 |
| 0...6MPa | 0...60bar | 3403-21-I5.37 |
| 0...10.0MPa | 0...100bar | 3403-16-I5.37 |
| 0...20.0MPa | 0...200bar | 3403-10-I5.37 |
| 0...25.0MPa | 0...250bar | 3403-17-I5.37 |
| 0...40.0MPa | 0...400bar | 3403-15-I5.37 |
| 0...60.0MPa | 0...600bar | 3403-18-I5.37 |
| 0...100.0MPa | 0...1000bar | 3403-29-I5.37 |
Hydrotechnik pressure sensors HT-PD PR130 0...10VDC output
| Measuring range(MPa) | Measuring range(Bar) | 0...10VDC |
| -0.01...0MPa | -0.1...0bar | 3403-60-I5.39 |
| -0.1...0.2MPa | -1...2bar | 3403-68-I5.39 |
| -0.1...0.6MPa | -1...6bar | 3403-32-I5.39 |
| 0...0.02MPa | 0...0.2bar | 3403-61-I5.39 |
| 0...0.2MPa | 0...2bar | 3403-25-I5.39 |
| 0...0.6MPa | 0...6bar | 3403-28-I5.39 |
| 0...1.0MPa | 0...10bar | 3403-26-I5.39 |
| 0...2.0MPa | 0...20bar | 3403-27-I5.39 |
| 0...2.5MPa | 0...25bar | 3403-40-I5.39 |
| 0...4.0MPa | 0...40bar | 3403-31-I5.39 |
| 0...6.0MPa | 0...60bar | 3403-21-I5.39 |
| 0...10.0MPa | 0...100bar | 3403-16-I5.39 |
| 0...20.0MPa | 0...200bar | 3403-10-I5.39 |
| 0...25.0MPa | 0...250bar | 3403-17-I5.39 |
| 0...40.0MPa | 0...400bar | 3403-15-I5.39 |
| 0...60.0MPa | 0...600bar | 3403-18-I5.39 |
| 0...100.0MPa | 0...1000bar | 3403-29-I5.39 |
