Hydrotechnik panel mounted instruments SEG1060 Introduction
 |
Panel mounted instruments SEG1060 |
| Hydrotechnik | |
| SEG1060 data download | |
| The SEG 1060 is perfectly tuned to all Hydrotechnik sensors and guarantees reliable performance. Even under diffi cult conditions, a problem-free integration is possible due to the small fi tting dimensions. The user-friendly operation is done completely from the front panel of the device. |
|
Hydrotechnik panel mounted instruments SEG1060 Features
| ◆One analogue measuring input for 0 to 20 mA, 4 to 20 mA and 0 to 10 V |
| ◆Frequency input:0锝?0KHZ |
| ◆12 bit Analog/Digital-converter |
| ◆Measuring rate > 40 ms |
| ◆LED display, 4-digit, very good readability,even from greater distance |
| ◆Operation from the front panel |
| ◆Fitting dimensions 96 x 48 mm acc. to DIN 43718 |
| ◆Collection of min/max values |
| ◆Optional: limit value with potential-free change-over contact and analog output 0 to 10 Volt or 0 to 20 mA / 4 to 20 mA |
| ◆Switchboard cut-out 43 x 90,5 mm (H x W) |

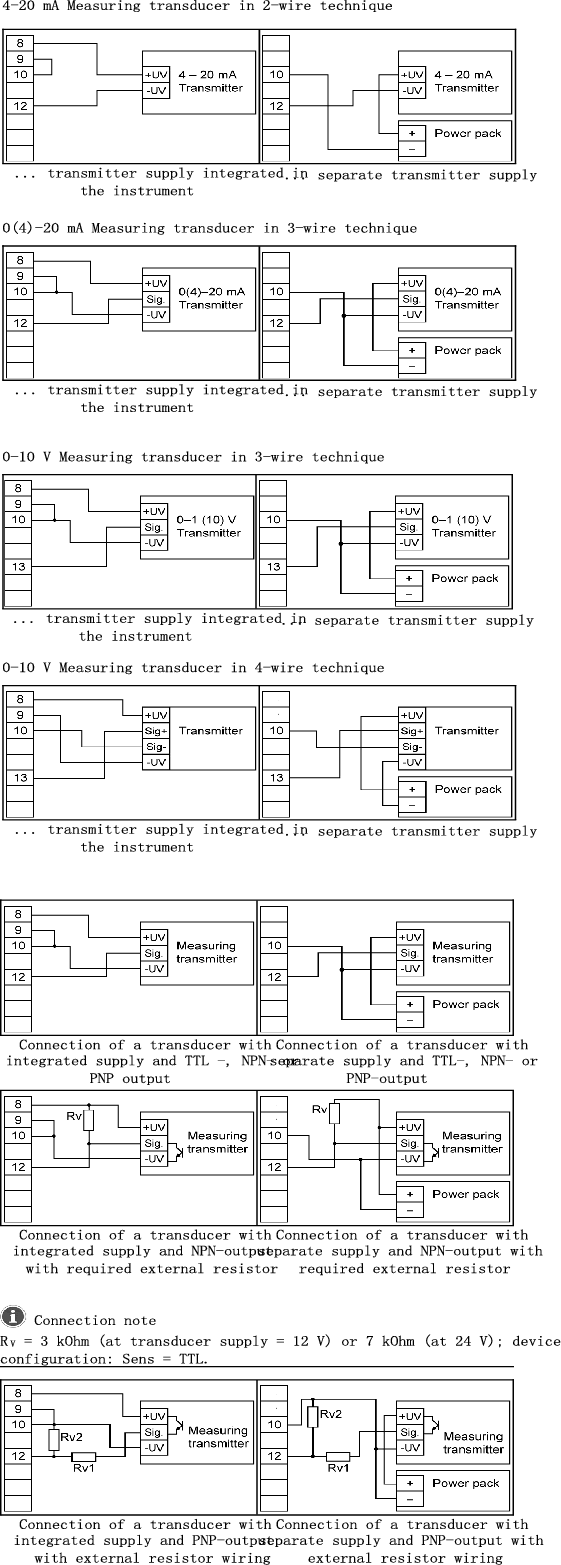

Hydrotechnik panel mounted instruments SEG1060 Applications
Hydrotechnik SEG1060/SEG1050 order NO.
| Supply voltage | SEG1050 | SEG1050 order NO. | SEG1060 | SEG1060 order NO. |
| 24VDC | only display | 3192-03-02.00 | only display | 3192-04-10.00 |
| with option 1 analogue output | 3192-03-04.00 | with option 1 analogue outpu | — | |
| with option2 limit value | 3192-03-06.00 | with option2 limit value | — | |
| with option 1 analogue output and 2 limit value | 3192-03-08.00 | with option 1 analogue output and 1 limit value | 3192-04-11.00 | |
| 230VAC | only display | 3192-03-01.00 | only display | 3192-04-20.00 |
| with option 1 analogue output | 3192-03-03.00 | with option 1 analogue output | — | |
| with option2 limit value | 3192-03-05.00 | with option2 limit value | — | |
| with option 1 analogue output and 2 limit value | 3192-03-07.00 | with option 1 analogue output and 1 limit value | 3192-04-21.00 |
Hydrotechnik SEG1000 Order NO.
| Supply voltage | SEG1000 | Analogue input | Frequency input |
| 24VDC | only display | 3192-01-02.00 | 3192-02-02.00 |
| with option 1 analogue output | 3192-01-04.00 | 3192-02-04.00 | |
| with option2 limit value | 3192-01-06.00 | 3192-02-06.00 | |
| with option 1 analogue output and 2 limit value | 3192-01-08.00 | 3192-02-08.00 | |
| 230VAC | only display | 3192-01-01.00 | 3192-02-01.00 |
| with option 1 analogue output | 3192-01-03.00 | 3192-02-03.00 | |
| with option2 limit value | 3192-01-05.00 | 3192-02-05.00 | |
| with option 1 analogue output and 2 limit value | 3192-01-07.00 | 3192-02-07.00 |
