Turbine volume flow sensor with load valve |
| hydrotechnik in china |
| Turbine volume flow sensor data download |
At pump inspections like records of pump curves in dependency of pressure, we recommend our loading valve with integrated measuring turbines as a useful testing device.

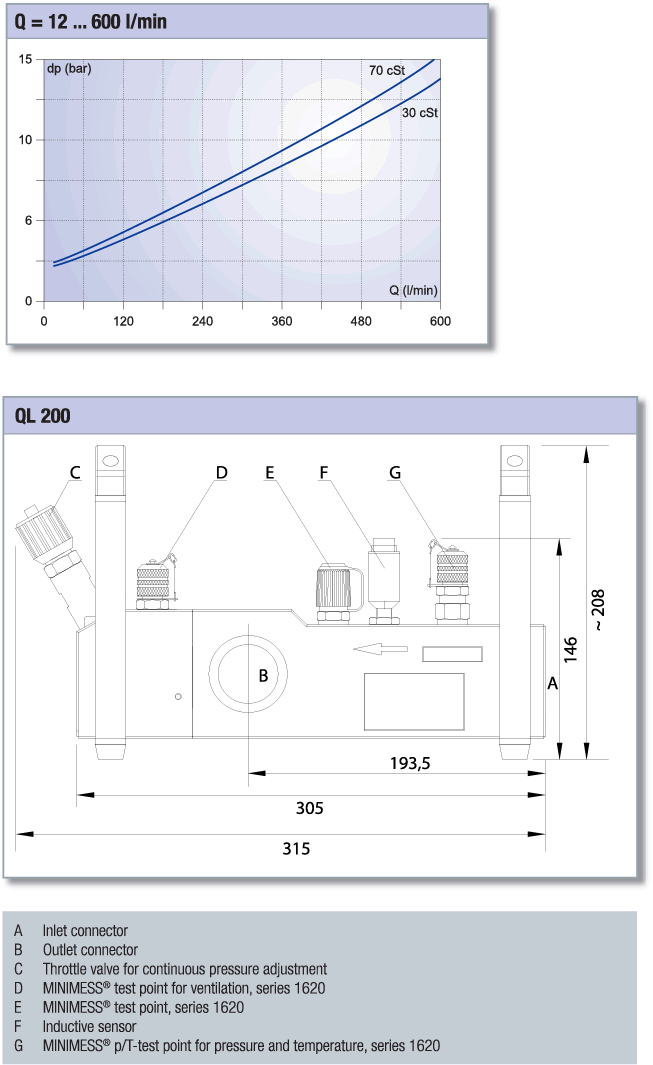

Hydrotechnik loading valve with two handles:
•Measuring range: 12 to 600 l/min
•Error limit: ± 2,5 % of the actual value at 30 cst (mm2 s-1)
•Viscosity range: 3 to 200 cst (mm 2 s-1)
•Operating pressure: max. 420 bar
•Operating temperature: -20 °C to +80 °C (short term to 100 °C)
•Connections: ISO 228-G1 1/4 (Inlet / Outlet)
•Dimensions: 305 x 146 x approx. 208 mm (LxWxH)
•Media application: Suitable for hydraulic- and other oils on
•mineral oil basis. |
HYDROTECHNIK evaluation instruments which can be connected:
- Hand held measuring instruments:Series 5060, 3010/3020, 3050. For the 2040/2045 please use 31GB-72-35.00A2.
- Panel mounted instruments:Typ "SEG 1060 and Compare" for volume flow rate
- Measuring data acquisiton systems:Group 8050, HY-MoCom 6000
|
Hydrotechnik qualities |
| Measuring principle |
volume fl ow |
| Viscosity range |
1 ... 100 mm²/s (cSt) |
| Medium temperature |
max. +120 °C |
| Environmental temperature |
-20 ... +85 °C (short-term up to +100 °C) |
| Storage temperature |
-20 ... +85 °C |
| Output signal |
frequency (rectangular signal) |
| Supply voltage Ub |
6.5 ... 30 VDC |
| Electrical measuring connector |
5 pole device connector, M16 x 0.75 |
| Mechanical measuring connector |
ISO228-G1¼ |
| Error limit |
± 2.5 % of current value |
| Protection type (EN 60529 / IEC 529) |
IP 40 |
| Tightening torque |
10 Nm (± 2 Nm) |
| Calibration viscosity |
30 mm²/s (cSt) |
| Material turbine casing |
Aluminium AlZnMgCu 1,5 |
| Material turbine wheel |
1.0718 |
| Material sealings |
FKM |
| Material sensor casing |
3.1645 |
| Suitable measuring cable |
MK 01 |
|
 |
| Pin assignment |
frequency out |
 |
Pin 1 = signal + |
| Pin 2 = – Ub / signal – / GND |
| Pin 3 = + Ub |
| Pin 4 = free |
| Pin 5 = free |
|
Hydrotechnik Turbine volume flow sensor with load valve |
Measuring
range |
Allowed working
pressure |
Order number / weight |
| l/min |
bar |
MPa |
frequency |
weight (g) |
| 25...600 |
420 |
42 |
31VB-72-35.030A2 |
6,516 |
|
