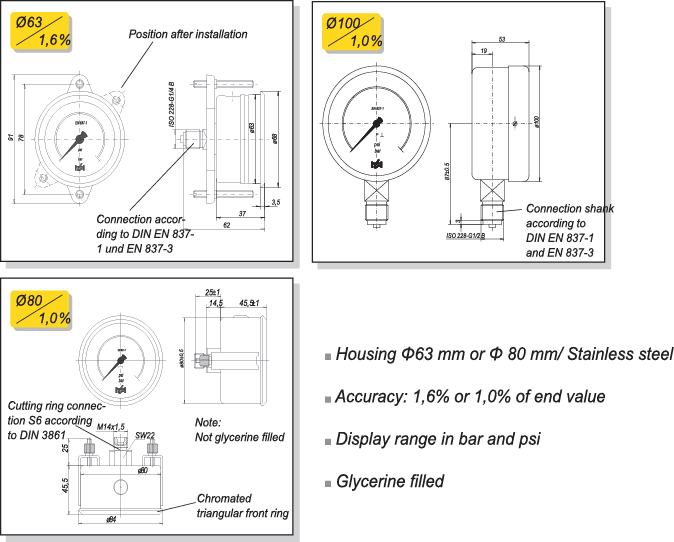

Hydrotechnik overview of analogue pressure gauges
Hydrotechnik order number of analogue pressure gauges φ63
| Display range |
Hydrotechnik Part-number |
| 0–10 bar (0–145 psi) |
9801-53-00.10 |
| 0–16 bar (0–230 psi) |
9801-53-00.16 |
| 0–25 bar (0–360 psi) |
9801-53-00.25 |
| 0–40 bar (0–580 psi) |
9801-53-00.40 |
| 0–60 bar (0–870 psi) |
9801-53-00.60 |
| 0–100 bar (0–1450 psi) |
9801-53-01.00 |
| 0–160 bar (0–2300 psi) |
9801-53-01.60 |
| 0–250 bar (0–3600 psi) |
9801-53-02.50 |
| 0–400 bar (0–5800 psi) |
9801-53-04.00 |
| 0–600 bar (0–8700 psi) |
9801-53-06.00 |
Hydrotechnik order number of analogue pressure gauges φ80
| Display range |
Hydrotechnik Part-number |
| 0–10 bar (0–145 psi) |
9801-35-00.10 |
| 0–16 bar (0–230 psi) |
9801-35-00.16 |
| 0–25 bar (0–360 psi) |
9801-35-00.25 |
| 0–40 bar (0–580 psi) |
9801-35-00.40 |
| 0–60 bar (0–870 psi) |
9801-35-00.60 |
| 0–100 bar (0–1450 psi) |
9801-35-01.00 |
| 0–160 bar (0–2300 psi) |
on request |
| 0–250 bar (0–3600 psi) |
9801-35-02.50 |
| 0–400 bar (0–5800 psi) |
9801-35-04.00 |
| 0–600 bar (0–8700 psi) |
9801-35-06.00 |
Hydrotechnik order number of analogue pressure gauges φ100
| Display range |
Hydrotechnik Part-number |
| 0–10 bar (0–145 psi) |
on request |
| 0–16 bar (0–230 psi) |
on request |
| 0–25 bar (0–360 psi) |
9801-20-00.25 |
| 0–40 bar (0–580 psi) |
on request |
| 0–60 bar (0–870 psi) |
9801-20-00.60 |
| 0–100 bar (0–1450 psi) |
9801-20-01.00 |
| 0–160 bar (0–2300 psi) |
9801-20-01.60 |
| 0–250 bar (0–3600 psi) |
on request |
| 0–400 bar (0–5800 psi) |
9801-20-04.00 |
| 0–600 bar (0–8700 psi) |
9801-20-06.00 |
