Hydrotechnik force sensor

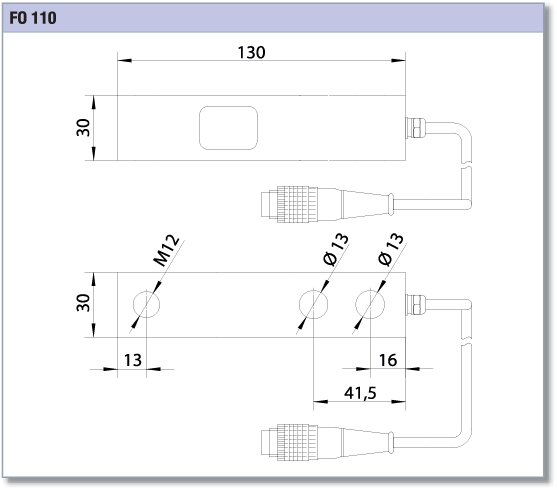

The deflecting beam principle (shear force sensor):

Since a force and the defl ection of a beam is proportional, this hydrotechnik sensor is able to determine a force by measuring its elongation or change in length.Due to its compact design, these hydrotechnik traction-pressure force sensors can be used in the
laboratory, as well as in industrial environments. Made with corrosion-proof steel,the hydrotechnik sensors have a standardized nominal characteristic value. They can be mountedeasily allowing simple integration into existing structures.

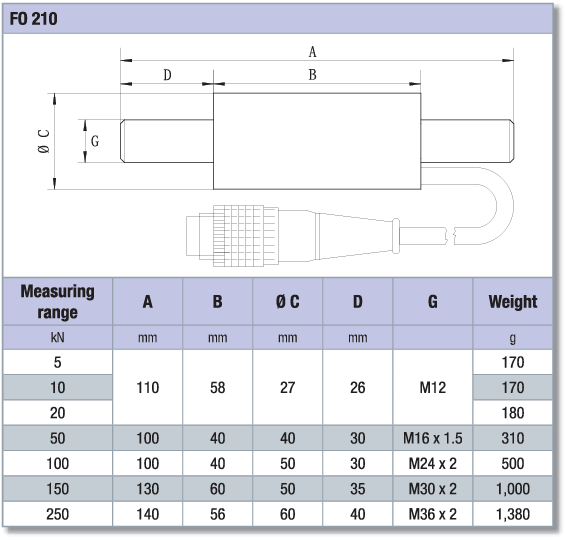

Hydrotechnik Traction force sensor:

The force sensor works to the principle of center-line force measurement. You can record traction forces at lifts, cranes and housings, or twistings of masts, towers or platforms.The hydrotechnik force sensor is a threaded rod. This allows easy and universal fastening. The application chamber for the resistance strain gauge is protected from mechanical and chemical damage
by an aluminium tube, cast with a highly elastic compound. Full bridges of resistance strain gauges measure the elongation and lateral expansion caused by traction forces.
