1. hydrotechnik

    MultiBox3060

    Hydrotechnik
    MultiBox3060 data download

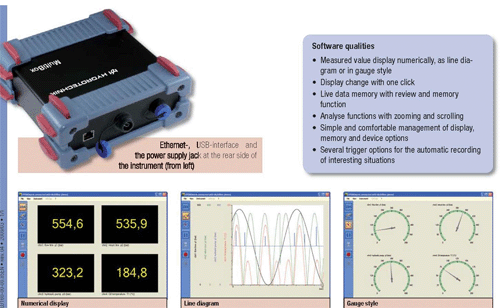

    Hydrotechnik MultiBox

    These sophisticated measuring instruments are your reliable companions for measuring tasks outside the offi ce. Protected against rough treatment,but highly sensitive for several measurands.
    Connect sensors and the USB interface – ready. The intuitive software offers professional functions for the immediate monitoring and recordingof all channels. Select the version that fi ts best for you: USB measuring box,data logger or Ethernet measuring box.

    Four analog inputs
    High-resolution A/D-converter
    Frequency input
    Two calculated channels
    Power supply via USB or external power pack
    Sensor power supply
    Internal memory (only MultiBox 3061/3065)
    Good protection against environmentalinfluences

    Hydrotechnik MultiBoxTechnical data and Order number

    Technical data MultiBox 3060 MultiBox 3061 MultiBox 3065
    Inputs 3x analog + 1x analog/frequency
    Analog input signal 0 ... 20 mA / 4 ... 20 mA
    Resolution A/D-converter 12 bit
    Input frequency 1 Hz ... 10 kHz
    Measuring rate 1 ms
    ISDS channels 4x
    Internal memory 128 MB
    Interfaces USB USB, Ethernet
    Sensor power supply 12 VDC
    MultiBox power supply 5 VDC, via USB
    ... alternatively 9 ... 30 VDC, from external power pack
    Current consumption < 500 mA < 600 mA
    Protection type IP 54 IP 40
    Dimensions (L x W x H) 114.7 x 100 x 38.4 mm
    Order number 3160-00-00.85 3160-00-00.86 3160-00-00.87
